How to connect cellular communicaton

It is optional for the A920 Pro support cellular communications. Either an AT&T®, Verizon®, or T-Mobile® SIM card is required to support cellular communication. For the terminal to communicate with the host or to download applications, the terminal communications method must be configured properly. Please consult your cellular carrier for additional configuration questions.

Please Note: • The A920 Pro may come with the SIM card already installed. • 4G communication will not work if the device is setup for either Wi-Fi or LAN communications at time of 4G setup. • The A920 Pro only supports size 2ff SIM cards; for Micro or Nano SIM cards, a spacer must be used.

CELLULAR SETUP - AUTO DETECT

1. Install SIM card. Please see “SIM, SAM, and/or SD Card Installation” for SIM card installation instructions.

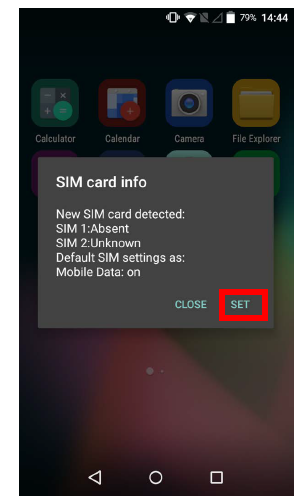

2. After installing an activated SIM card, the device will display a SIM notification. Select [SET]

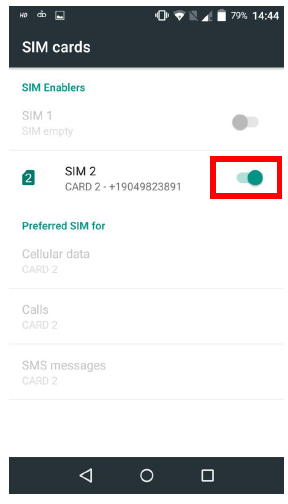

3. Slide the highlighted toggle right to enable SIM card.

CELLULAR SETUP - MANUAL

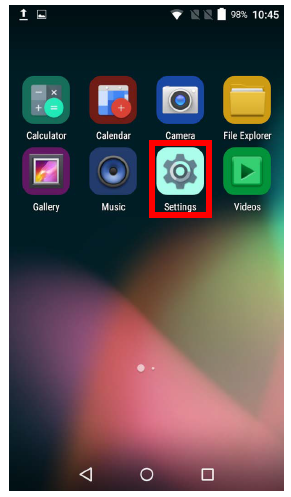

1. Select [Settings].

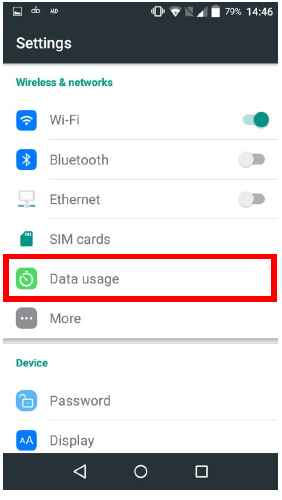

2. Select[Data usage].

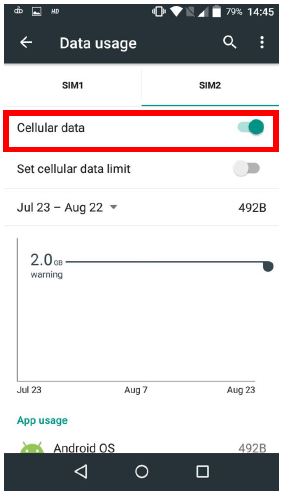

3. Slide the highlighted toggle right to enable cellular data.

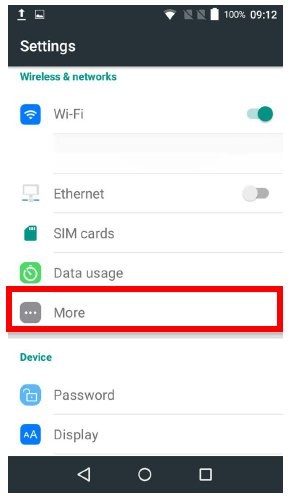

4. Return to the main settings menu and select[More].

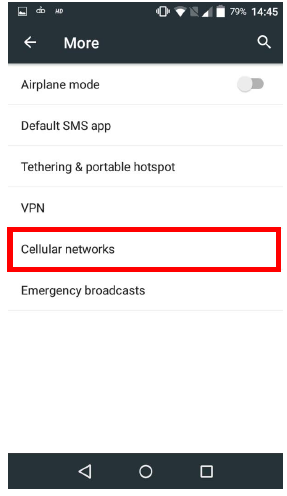

5. Select [Cellular networks].

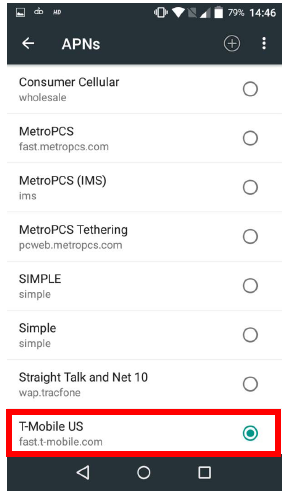

6. Select the network APN to connect.

Please Note: If the device is not automatically detecting the network, select the + sign in the top righthand side of the APNs menu to add a new network.
